Fiber Optical Splice Closure >> Dome Fiber Optical Splice Closure >> FOS.F02.A009

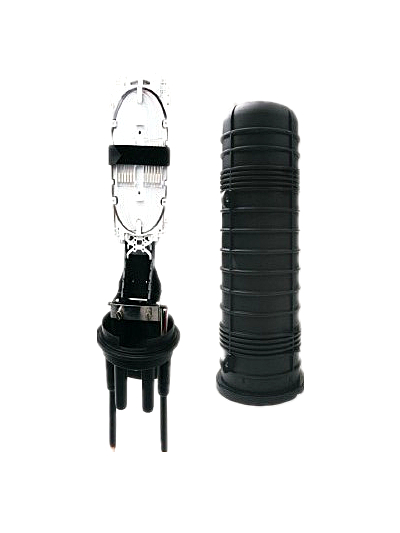

FOS.F02.A009 FOS.F02.A009 Fiber Optic Splice Closure have four alone round-port and one oval port. Fit for the straight-through and branching of the aerial??wall-mount and direct bury application of the fiber cable. It is reentry box which is made of PC or PP material. The shells and the base are sealed by silicon gum. And?? the entry ports are sealed by heat-shrinkable tubes. This product can reentry and use again after it be opened.    Other Views - Click on image to change view .

Application:Aerial-hanging,Wall-mount,Direct bury   Technical Parameter??   Item FOS.F02.A009 Dimension??mm?? Φ230×460 Weight??Kg?? 3.75 Diameter of cable(mm) Φ7~Φ22 No. of cable inlet??outlet Three inlet & three outlet Max. capacity of tray 24??single?? Max. No. of tray 6 Max. capacity??core?? 144??single??24cores/tray?? Sealing structure of entry ports Heat-shrinkable tube Sealing structure Silicon gum
