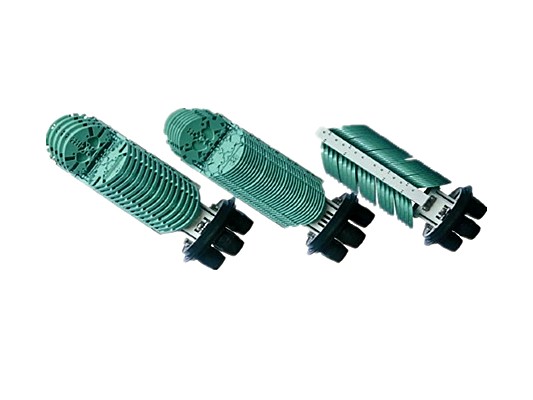

FOS.F02.A008 The FOS.F02.A008 Closure allows six cables in and six cables out. It accommodates the splicing and branching of the cable which is used in aerial-hanger, wall-mounting or direct buried. The Closure is an openable box which is made from high-quality PC. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the entry ports are sealed by heat-shrinkable tube. The Closure can be opened and used again.    Other Views - Click on image to change view .

Application:   Aerial-hanger, Wall-mounting,       Direct Buried   Specification   Item FOS.F02.A008 Dimension (mm) Φ278×560 Weight (Kg) 5 Cable Diameter (mm) Φ7-Φ25 Cables Entry & Exit 6 & 6 Max Capacity of Cores Per Splice Tray 12 (Single) /4 (Single) Max Capacity of Splice Trays/ Closure 40 (12 Cores/Single)/ 80(4 Cores/Single) Max Capacity of Core Single: 480(12Cores) /320(4Cores) , Ribbon 720(6Cores)/960(8Cores)/1440(12Cores) Sealing Structure of Cable Entry Port Silicon Gum Material Sealing Structure Silicon Gum Material
