Fiber Optical Splice Closure >> Dome Fiber Optical Splice Closure >> FOS.F02.A006

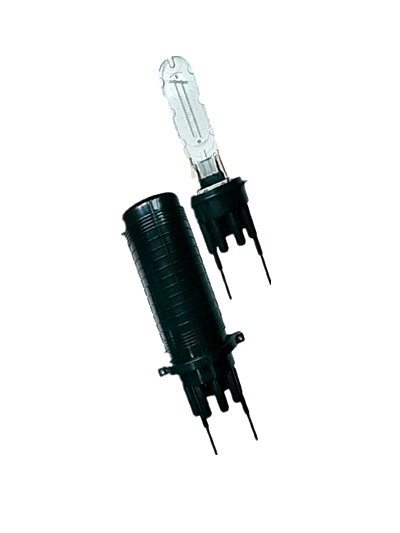

FOS.F02.A006 FOS.F02.A006 Closure allows four cables in and four cables out (with six stand-alone Cable Entry Ports and one oval cable entry port). It accommodates the spliceing and branching of the cable which is used in aerial-hanger, wall-mounting or direct buried. The Closure is an openable box which is made from high-quality PC. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the entry ports are sealed by heat-shrinkable tube. The Closure can be opened and used again.    Other Views - Click on image to change view .

Specification   Item FOS.F02.A006 Dimension (mm) Φ278×595 Weight (Kg) 7 Cable Diameter (mm) Φ7-Φ23 Cable Entry & Exit 4 & 4 Max Capacity of Cores Per Splice Tray 36 ( Single ) Max Capacity of Splice Trays/ Closure 7 Max Capacity of Cores 252 ( Single) Sealing Structure of Cable Entry Port Heat-shrinkable Sealing Structure Sealing Structure Silicon Gum Material
