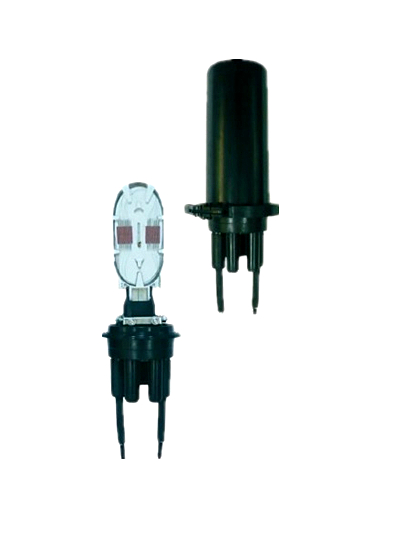

FOS.F02.A005 FOS.F02.A005 Closure allows three cables in and three cables out (with four stand-alone Cable Entry Ports and one oval cable entry port). It accommodates the splicing and branching of the cable which is used in aerial-hanger, wall-mounting or direct buried. The Closure is an openable box which is made from high-quality PC. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the entry ports are sealed by heat-shrinkable tube. The Closure can be opened and used again.    Other Views - Click on image to change view .

Specification   Item FOS.F02.A005 Dimension (mm) Φ210×440 Weight (Kg) 4 Cable Diameter (mm) Φ7-Φ22 Cables Entry & Exit 3 & 3 Max Capacity of Cores Per Splice Tray 12 (Single) / 16 (Single) /72 (Ribbon) Max Capacity of Splice Trays/ Closure 4 Max Capacity of Core Single: 48 (12Cores/Tray)/ 64 (16Cores/Tray), Ribbon: 144(6Cores) / 192(8Cores)/ 288(12 Cores) Sealing Structure of Cable Entry Port Heat-shrinkable Sealing Structure Sealing Structure Silicon Gum Material
