Fiber Optical Splice Closure >> Dome Fiber Optical Splice Closure >> FOS.F02.A004

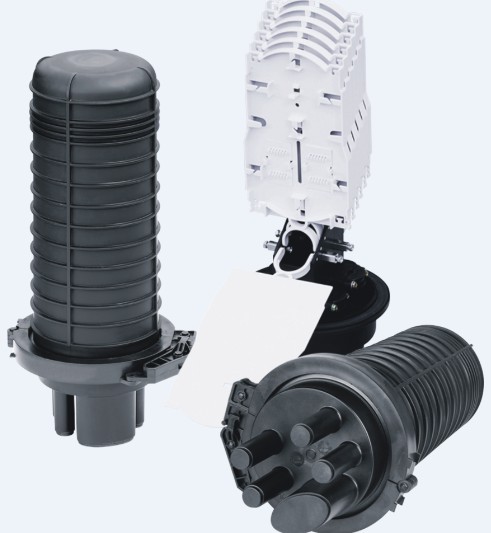

FOS.F02.A004 FOS.F02.A004 type of FOSC is designed for connection and branching of fiber cables. It has 5 cable ports, one of oval ports is for un-cut cable which can be with 2 cables dia. from ??8 to??24mm. And the other 4 ports are for cut cables which can be with cable dia. from??8 to ??17.5mm. It is suitable for aerial, wall mounting and pole mounting installation.    Other Views - Click on image to change view .

Specification   Size??mm?? 450×φ230 Capacity(single) 144 Weight??kg?? 3.8??4.2 Sealing type Heat Shrink Entrances 5 Capacity of single tray 24 Suitable cable dia.(mm) ??8????17.5 Maximum number of trays 6 Insulation resistance ≥2×104MΩ Environment temperature?? -40????+65?? Voltage resistance?? No arc-over or puncture under 15KVDC/1min
