Fiber Optical Splice Closure >> Dome Fiber Optical Splice Closure >> FOS.F02.A003

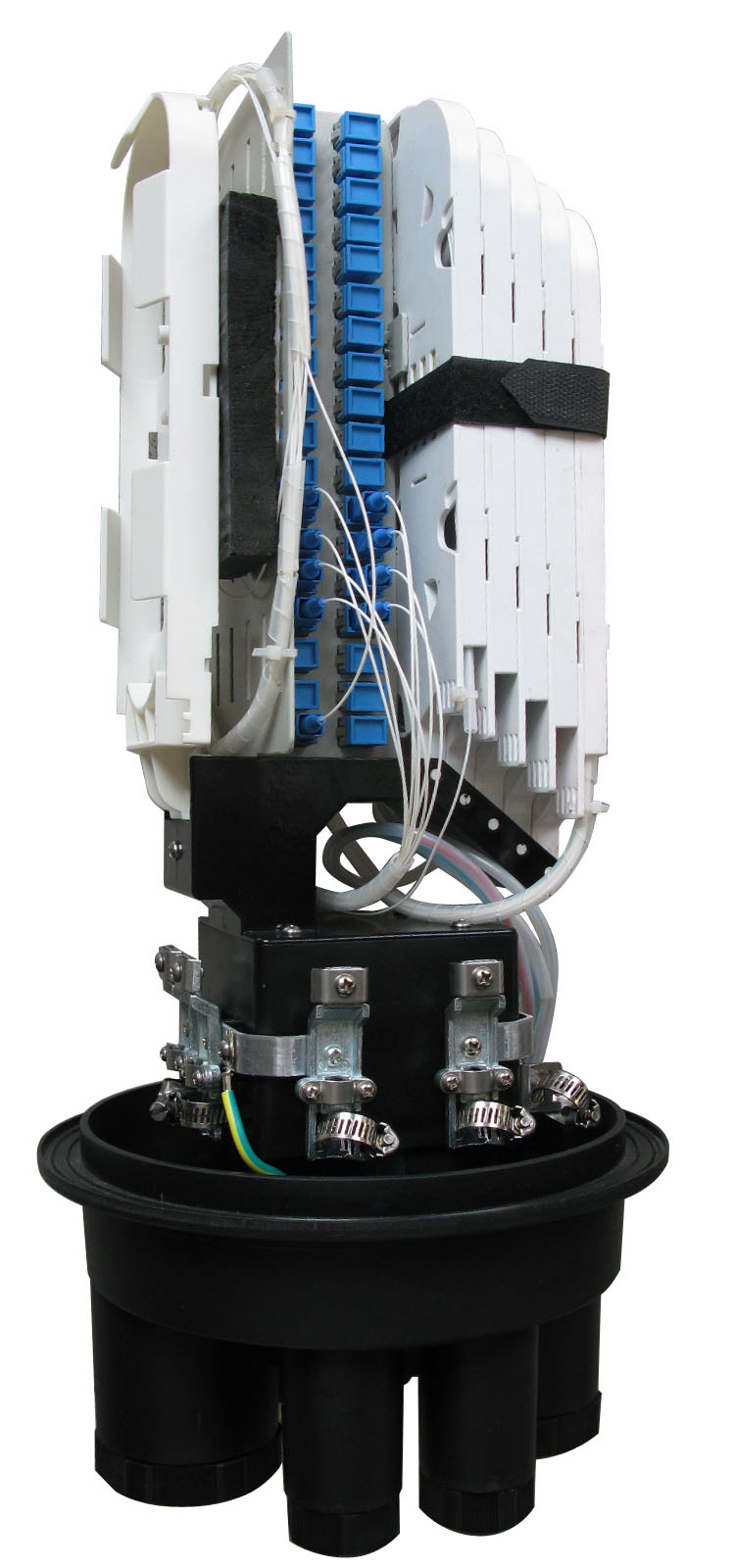

FOS.F02.A003 FOS.F02.A003 type of Fiber Optic Splice Closure (FOSC)??it is protection for fiber straight through, branching and connecting. It accommodate PLC splitter. IP 68. It could be used for aerial, pole-mounting, wall-mounting and underground applications.    Other Views - Click on image to change view .

Specification   Weight??kg?? 4.3~4.8 Max.Capacity(Single fiber) 120 fibers External Dimension??mm?? 470x??210 Sealing type Mechanical Cable Ports 5 ports??1 oval port for un-cut cable, other two big round ports and small round ports for regular cable?? Capacity per Tray 24 fibers Suitable Cable Diameter(mm) Suitable cable dia.??8-??17.5mm. Also the grommets can be customized for any type of soft cable.   Adaptor Max. 36pcs SC adaptor Splice Tray Quantity 5
