Fiber Optical Cables >> Armored cable >> FOS.A03.B004

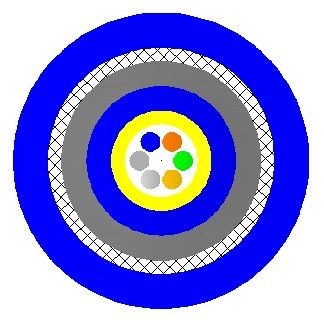

FOS.A03.B004 Fiber??colored fiber*6 cores Metal Tube??Stainless Steel Kevlar??4*1100D Metal Braid??coverage over 50% Outer Jacket??PVC,LSZH,PU    Other Views - Click on image to change view .

Specification                           Item Unit Size Fiber mm 0.25±0.05 0.6±0.05 Metal Tube mm 2.8±0.1 4.7±0.1 Kevlar decitex 1100 Metal Braid mm 3.2±0.1 5.0±0.1 Outer Jacket mm 5.0±0.1 6.5±0.3 Weight Kg/km 54 68
